Config

config options

to write each task config.
we use key-value below.

key	require	type	description
name	o	str	name of task
module	o	str	path to task
comment	-	str
data_key_replace	-	dict	replace key name whitch used in data
data_defaults	-	dict	default value for specific key
data_override	-	dict	override value for specific key
conditions	-	list	condition for execute task
break_on_exceptions	-	bool	stop process when error occur

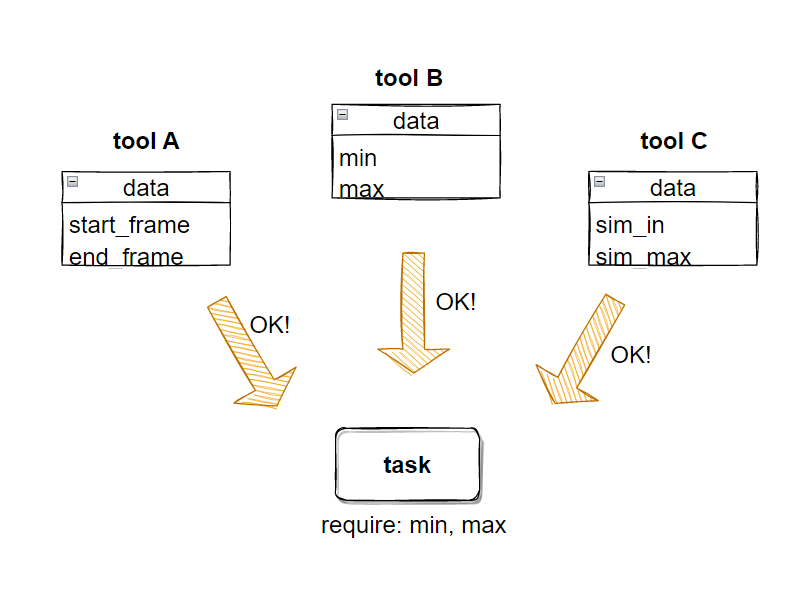

data_key_replace

eplace key name whitch used in data

config

data_key_replace:
    min: start_frame
    max: end_frame

in this case, start_frame replaced to min and end_frame replaced to max

script

# -*-coding: utf8-*-

from puzzle2.Puzzle import Puzzle
config = [...]
data = {
    "start_frame": 101,
    "end_frame": 200
}

puzzle = Puzzle()
puzzle.play(config, data)

data_defaults

set default values.if we set default values.
we don't have to add key to data.

config

data_defaults:
    min: 101

task

def main(event={}):
    data = event.get("data", {})
    cmds.playbackOptions(min=data["min"], max=data["max"])
    print("{} - {}".format(data["min], data["max"]))

script

# -*-coding: utf8-*-

from puzzle2.Puzzle import Puzzle

config = [...]
data = {
    "main": {
        "max": 200
    }
}

puzzle = Puzzle()
puzzle.play(config, data)

# 101 - 200

data_override

if data_override exists, value will override to spesific value.

config

data_override:
    min: 101

task

def main(event={}):
    data = event.get("data", {})
    cmds.playbackOptions(min=data["min"], max=data["max"])
    print("{} - {}".format(data["min], data["max"]))

script

# -*-coding: utf8-*-

from puzzle2.Puzzle import Puzzle

config = [...]
data = {
    "main": {
        "min": 0,
        "max": 200
    }
}

puzzle = Puzzle()
puzzle.play(config, data)

>> 101 - 200
# min 0 was overrided by config

conditions

set conditions, then task will execute when condition passed

config

conditions:
    - change_frame_flag: false

task

def main(event={}):
    data = event.get("data", {})
    cmds.playbackOptions(min=data["min"], max=data["max"])
    print("{} - {}".format(data["min], data["max"]))

script

# -*-coding: utf8-*-

from puzzle2.Puzzle import Puzzle

config = [...]
data = {
    "main": {
        "min": 0,
        "max": 200,
        "change_frame_flag": False
    }
}

puzzle = Puzzle()
puzzle.play(config, data)

in this case, this task will skipped.
usually we use this when executing tasks from GUI.
